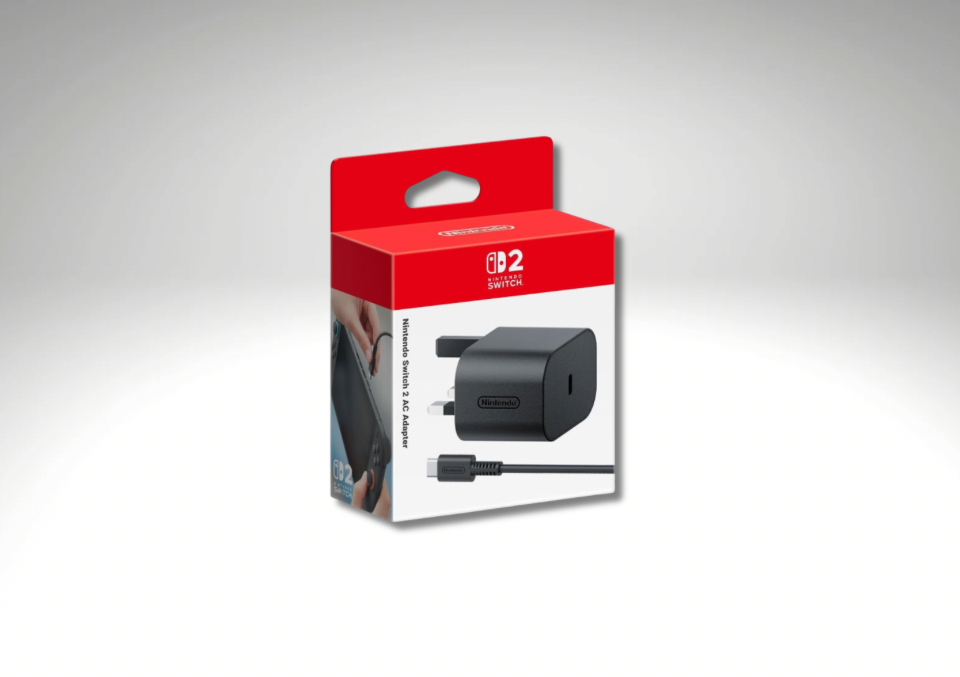

NINTENDO SWITCH 2 AC ADAPTER

• The Nintendo Switch 2 AC Adapter is a replacement accessory, not included with the base console. It provides power to both the Nintendo Switch 2 system and its dock.
• It includes a detachable design, where the AC plug and the USB‑C cable can be separated for easier storage and portability.

• Technical Specifications

  • Input: AC 100–240 V, 50/60 Hz, 1.6 A
  • Output (USB‑C PD):

  • 5.0 V / 3.0 A
  • 9.0 V / 3.0 A
  • 15.0 V / 3.0 A
  • 20.0 V / 3.0 A
    → Maximum output: 60 W
  • Physical Dimensions:

  • Approximately 49.5 mm × 38.5 mm × 45 mm (excluding the removable plug and cable)
  • Cable Length: Approx. 1.5 meters.

  •

Compatibility & Usage

• It works with both the Nintendo Switch 2 system and the Nintendo Switch 2 dock—ideal for power needs across modes.
• Due to its 60 W output, it’s suitable for docked mode, where higher power is required. In comparison, the original Nintendo Switch adapter had lower output and cannot power the Switch 2 docked mode effectively.

Additional Insights

• A technical teardown confirms that the adapter supports USB‑C Power Delivery (PD) 3.0 and can power not only the Switch 2 but also phones, tablets, and lightweight laptops—thanks to its detachable design and versatile power range.
• User discussions mention the adapter’s enhanced power: “It’s 60 W dock input and 42 W handheld/output by the dock,” compared to the original which provided “39 W dock input and 18 W handheld/output.”
